Access Locked Files With TScopy

Written by Scott Nusbaum

Wanted: TScopy Tool Testers

GitHub Repo

Introducing TScopy

It is a requirement during an Incident Response (IR) engagement to have the ability to analyze files on the filesystem. Sometimes these files are locked by the operating system (OS) because they are in use, which is particularly frustrating with event logs and registry hives. TScopy allows the user, who is running with administrator privileges, to access locked files by parsing out their raw location in the filesystem and copying them without asking the OS.

There are other tools that perform similar functions, such as RawCopy, which we have used and is the basis for this tool. However, there are some disadvantages to RawCopy that led us to develop TScopy, including performance, size, and the ability to incorporate it in other tools.

This blog is intended to introduce TScopy but also to ask for assistance. As in all software development, the more a tool is used, the more edge cases can be found. We are asking that people try out the tool and report any bugs.

What is TScopy?

TScopy is a Python script used to parse the NTFS $MFT file to locate and copy specific files. By parsing the Master File Table (MFT), the script bypasses operating system locks on files. The script was originally based on the work of RawCopy. RawCopy is written in AutoIT and is difficult to modify for our purposes. The decision to port RawCopy to Python was done because of the need to incorporate this functionality natively into our toolset.

TScopy is designed to be run as a standalone program or included as a python module. The python implementation makes use of the python-ntfs tools found at TScopy built upon the base functionality of python-ntfs to isolate the location of each file from the raw disk.

What makes TScopy different?

TScopy is written in Python and organized into classes to make it more maintainable and readable than AutoIT. AutoIT can be flagged as malicious by anti-virus or detections software because some malware has utilized its potential.

The major difference between TScopy and RawCopy is the ability to copy multiple files per execution and to cache the file structure. As shown in the image below, TScopy has options to download a single file, multiple comma delimited files, or the contents of a directory. The directory option does not offer recursion and will not copy subfolders.

TScopy caches the location of each directory and file as it iterates the target file’s full path. It then uses this cache to optimize the search for any other files, ensuring future file copies are performed much faster. This is a significant advantage over RawCopy, which iterates over the entire path for each file.

TScopy Options

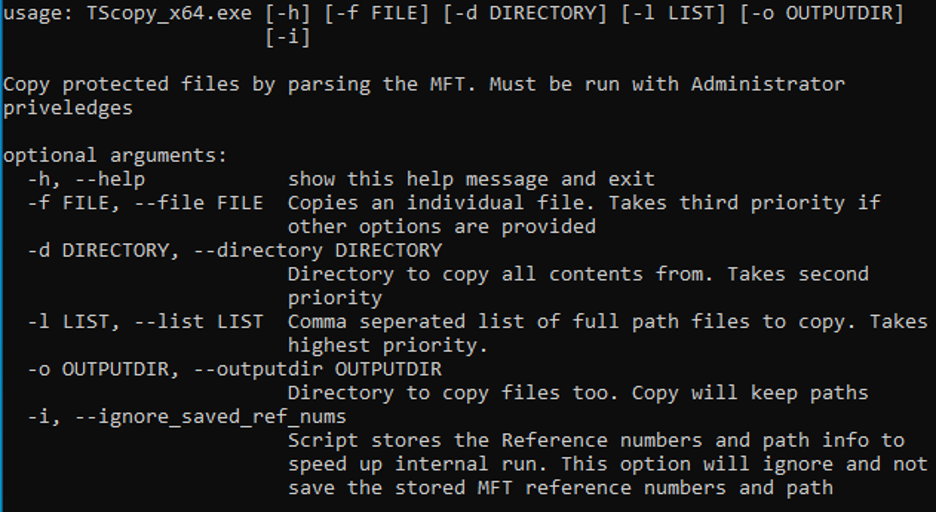

Figure 1 - TScopy Help Menu

There is a hidden option ‘-d’, which enables the debug output.


TScopy_x64.exe -f c:\windows\system32\config\SYSTEM -o e:\outputdir

Copies the SYSTEM registry to e:\outputdir
The new file will be located at e:\outputdir\windows\system32\config\SYSTEM

TScopy_x64.exe -f c:\windows\system32\config\SYSTEM -o e:\outputdir -i

Copies the SYSTEM registry to e:\outputdir but ignores any previous cached files and does not save the current cache to disk

TScopy_x64.exe -l c:\windows\system32\config\SYSTEM,c:\windows\system32\config\SOFTWARE -o e:\outputdir

Copies the SYSTEM and the SOFTWARE registries to e:\outputdir

TScopy_x64.exe -d c:\windows\system32\config\ -o e:\outputdir

Copies the contents of the directory config to e:\outputdir

The following are example outputs of the execution:

Figure 2 - Example output from TScopy with no cache
Figure 3 - Example output from TScopy with cache

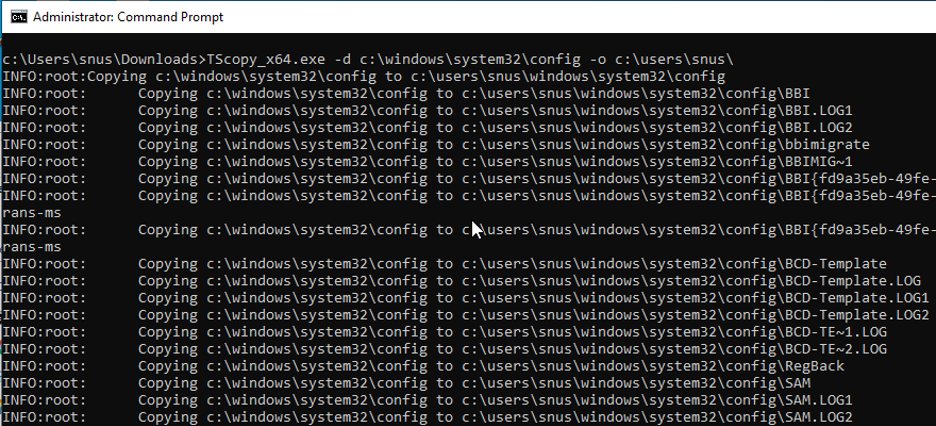

Figure 4 - Example output from TScopy of a directory copy

Bug Fixes and Enhancements

Version 2.0

  • Issue 1: Change sys.exit to raise Exception
  • Issue 2: The double copying of files. Full name and short name.
  • Issue 3: Added the ability to recursively copy a directory
  • Issue 4: Add the support for wildcards in the path. Currently only supports *
  • Issue 5: Removed the hardcoded MFT size. MFT size determined by the Boot Sector
  • Issue 6: Converted the TScopy class into a singleton. This allows the class to be instantiated once and reuse the current MFT metadata object for all copies.
  • Issue 7: Attribute type ATTRIBUTE_LIST is now being handled.
  • Changes: General comments have been added to the code
  • Changes: Input parameters have changed. Reduced the three(3) different options --file, --list, and --directory to --file.
  • Changes: Backend restructuring to support new features.

Bug Reporting Information

Please report bugs in the issues section of the GitHub page.
